Tees and crosses

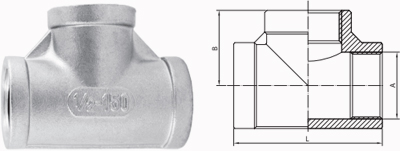

Tee, female thready

  • Grade: 316
  • Catalog no.: 105
NW A B [mm] L [mm]
6 1/8'' 18 36
8 ¼'' 21 42
10 3/8'' 25 50
15 ½'' 28 56
20 ¾'' 33 66
25 1'' 38 76
32 11/4'' 45 90
40 11/2'' 50 100
50 2'' 58 116
65 21/2'' 70 140
80 3'' 78 156
100 4'' 96 192

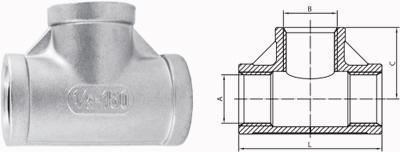

Reduction tee, female thread

  • Grade: 316
  • Catalog no.: 106
NW A B C [mm]
06-sie ¼'' 1/8'' 21
08-paź 3/8'' ¼'' 25
15-paź ½'' 3/8'' 28
20/15 ¾'' ½'' 33
25/20 1'' ¾'' 38
32/25 11/4'' 1'' 45
40/32 11/2'' 11/4'' 50
50/40 2'' 11/2'' 58

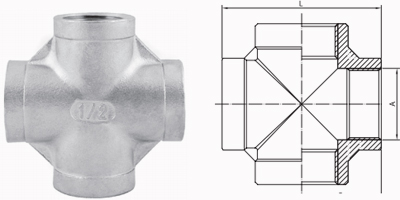

Cross

  • Grade: 316
  • Catalog no.: 107
NW A B [mm] L [mm]
8 ¼'' 21 42
10 3/8'' 25 50
15 ½'' 28 56
20 ¾'' 33 66
25 1'' 38 76
32 11/4'' 45 90
40 11/2'' 49 98
50 2'' 57 114
