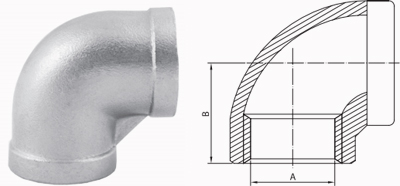

Bend 90o female thread

  • Grade: 316
  • catalog no.: 100
NW A B [mm]
6 1/8'' 18
8 ¼'' 21
10 3/8'' 25
15 ½'' 28
20 ¾'' 33
25 1'' 38
32 11/4'' 45
40 11/2'' 50
50 2'' 58
65 21/2'' 70
80 3'' 80
100 4'' 105

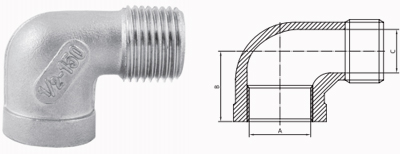

Nipple bend 90o female-male thread

  • Grade: 316
  • Catalog no.: 101
NW A B [mm]
6 1/8'' 18
8 ¼'' 21
10 3/8'' 24
15 ½'' 28
20 ¾'' 33
25 1'' 38
32 11/4'' 45
40 11/2'' 49
50 2'' 57
65 21/2'' 68
80 3'' 80
100 4'' 130

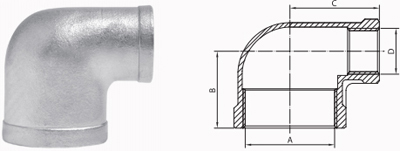

Reduction bend 90o female thread

  • Grade: 316
  • Catalog no.: 102
NW A C B [mm]
06-sie ¼'' 1/8'' 21
08-paź 3/8'' ¼'' 25
15-paź ½'' 3/8'' 28
20/15 ¾'' ½'' 33
25/20 1'' ¾'' 38
32/25 11/4'' 1'' 45
40/32 11/2'' 11/4'' 50
50/40 2'' 11/2'' 58

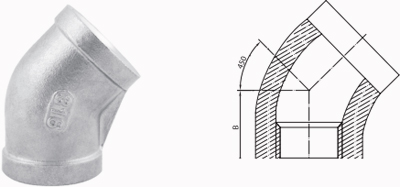

Bend 45o female thread

  • Grade: 316
  • Catalog no.: 103
NW A C
8 ¼'' 19
10 3/8'' 20
15 ½'' 23
20 ¾'' 25
25 1'' 29
32 11/4'' 33
40 11/2'' 37
50 2'' 43
65 21/2'' 56
80 3'' 68

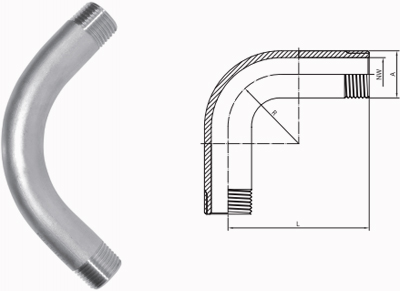

BEND MALE THREAD
Grade: 316
Catalog no.: 104

NW A C
8 ¼'' 60
10 3/8'' 70
15 ½'' 80
20 ¾'' 100
25 1'' 120
32 11/4'' 140
40 11/2'' 160
50 2'' 190
65 21/2'' 240
80 3'' 290
