Transport pipes - EN - Cromo Stal

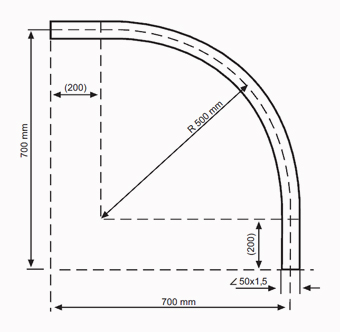

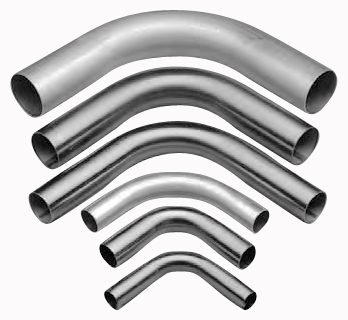

DIAMETER [mm]	RADIUS [mm]
DIAMETER [mm]	70	75	95	115	150	250	300	500	800	1000
38,0 x 1,5	●					●		●	●
40,0 x 1,5		●				●		●	●	●
45,0 x 1,5		●					●	●
50,0 x 1,5		●				●		●	●	●
50,0 x 2,0		●				●		●	●
54,0 x 2,0		●			●	●		●	●	●
60,3 x 2,0				●		●		●	●	●
63,5 x 2,0								●
65,0 x 2,0				●		●		●	●	●
70,0 x 2,0			●					●	●	●
76,1 x 2,0								●	●	●
80,0 x 2,0					●			●	●	●
80,0 x 1,5								●	●	●
84,0 x 2,0					●			●	●	●
88,9 x 2,0						●		●	●	●
100,0 x 1,5								●	●
101,6 x 2,0								●	●	●
104,0 x 2,0					●			●	●	●
114,3 x 2,0					●			●	●	●
114,3 x 2,6									●	●
129,0 x 2,0								●	●	●
133,0 x 3,0										●
139,7 x 2,0								●
154,0 x 2,0								●	●	●

Physical parameters for sample pipes with various diameters can be found below:

DIAMETER [mm] MAX	OVERPRESSURE [bar] MAX	VACUUM [bar]	RESISTANCE [bar]
60,3	18	0,8	12
70	18	0,8	12
75	18	0,8	12
76,1	18	0,8	12
80	16	0,8	12
82	12	0,8	8
84	12	0,8	8
85	12	0,8	8
88,9	12	0,8	8
90	10	0,8	7
100	10	0,8	7
101,6	10	0,8	7
104	10	0,8	7
106	8	0,8	7
108	10	0,8	7
110	8	0,8	7
114,3	9	0,8	6
125	4	0,8	2
129	4	0,8	2
133	3	0,8	1,5
139,7	2,5	0,8	1,5
154	2,5	0,8	1,5
