Unions

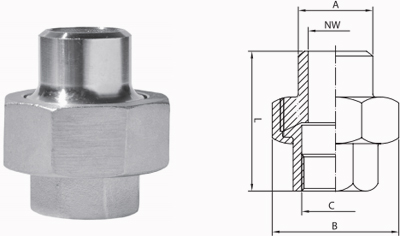

Union, conical stubs, female thread/weld

  • Grade: 316
  • Catalog no.: 131
NW A [mm] C L [mm] B [mm]
8 13,5 ¼'' 43 35
10 17,2 3/8'' 41 38
15 21,3 ½'' 42 42
20 26,9 ¾'' 44 49
25 33,7 1'' 50 58
32 42,4 11/4'' 53 70
40 48,3 11/2'' 64 77
50 60,3 2'' 67 91
65 76,1 21/2'' 78 110
80 88,9 3'' 90 125

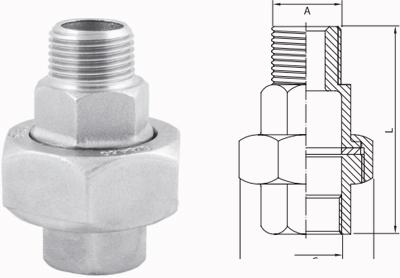

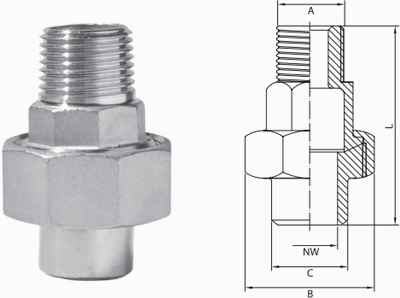

Union, conical stubs, male thread/weld

  • Grade: 316
  • Catalog no.: 132
NW C [mm] A L [mm] B [mm]
8 13,5 ¼'' 43 35
10 17,2 3/8'' 41 38
15 21,3 ½'' 42 42
20 26,9 ¾'' 44 49
25 33,7 1'' 50 58
32 42,4 11/4'' 53 70
40 48,3 11/2'' 64 77
50 60,3 2'' 67 91
65 76,1 21/2'' 78 110
80 88,9 3'' 90 125

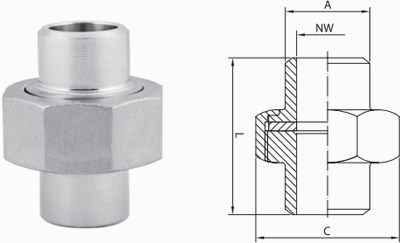

Union, flat stubs for welding with PTFE gasket

  • Grade: 316
  • Catalog no.: 123
NW A [mm] L [mm] C [mm]
6 10,2 39 35
8 13,5 39 35
10 17,2 40 38
15 21,3 41 38
20 26,9 46 49
25 33,7 49 49
32 42,4 53 60
40 48,3 71 70
50 60,3 74 75
65 76,1 85 109
80 88,9 96 125

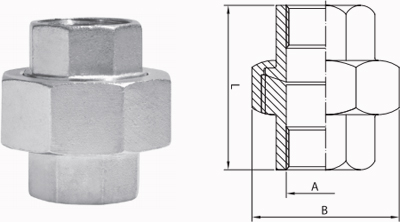

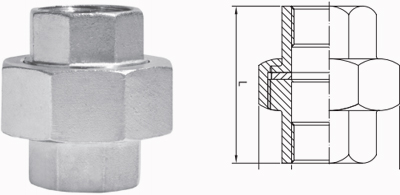

Union, flat stubs, female thread with PTFE gasket

  • Grade: 316
  • Catalog no.: 124
NW A L [mm] B [mm]
6 1/8'' 33 31
8 ¼'' 45 35
10 3/8'' 45 38
15 ½'' 43 42
20 ¾'' 46 49
25 1'' 51 60
32 11/4'' 56 70
40 11/2'' 59 77
50 2'' 67 91
65 21/2'' 83 110
80 3'' 97 126

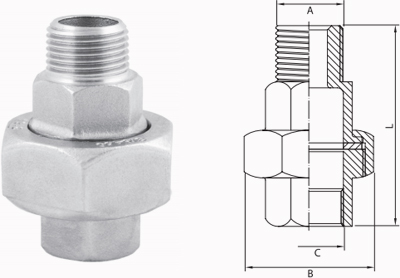

Union, flat stubs, female-male thread with PFTE gasket

  • Grade: 316
  • Catalog no.: 125
NW A C L [mm] B [mm]
8 ¼'' ¼'' 54 35
10 3/8'' 3/8'' 57 40
15 ½'' ½'' 55 42
20 ¾'' ¾'' 62 49
25 1'' 1'' 69 60
32 11/4'' 11/4'' 78 70
40 11/2'' 11/2'' 84 76
50 2'' 2'' 89 91
65 21/2'' 21/2'' 110 110
80 3'' 3'' 125 125

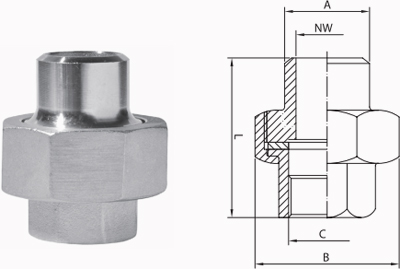

Union, flat stubs, female thread/welded with PTFE gasket

  • Grade: 316
  • Catalog no.: 126
NW A L [mm] B [mm]
6 1/8'' 33 31
8 ¼'' 45 35
10 3/8'' 45 38
15 ½'' 43 42
20 ¾'' 46 49
25 1'' 51 60
32 11/4'' 56 70
40 11/2'' 59 77
50 2'' 67 91
65 21/2'' 83 110
80 3'' 97 126

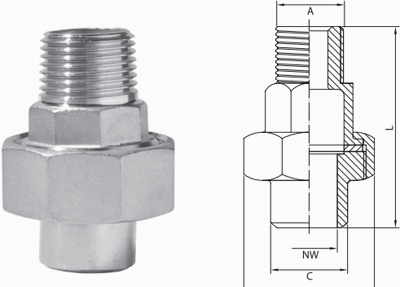

Union, flat stubs, male thread/welded with PTFE gasket

  • Grade: 316
  • Catalog no.: 127
NW A C L [mm] B [mm]
8 ¼'' ¼'' 54 35
10 3/8'' 3/8'' 57 40
15 ½'' ½'' 55 42
20 ¾'' ¾'' 62 49
25 1'' 1'' 69 60
32 11/4'' 11/4'' 78 70
40 11/2'' 11/2'' 84 76
50 2'' 2'' 89 91
65 21/2'' 21/2'' 110 110
80 3'' 3'' 125 125



Union, conical stubs, female thread

  • Grade: 316
  • Catalog no.: 128
NW A L [mm] B [mm]
6 1/8'' 33 31
8 ¼'' 33 31
10 3/8'' 38 41
15 ½'' 42 42
20 ¾'' 48 49
25 1'' 58 59
32 11/4'' 60 69
40 11/2'' 64 78
50 2'' 73 92
65 21/2'' 83 110
80 3'' 97 125



Union, conical stubs, female/male thread

  • Grade: 316
  • Catalog no.: 129
NW A L [mm] B [mm] C
8 ¼'' 54 35 ¼''
10 3/8'' 57 40 3/8''
15 ½'' 55 42 ½''
20 ¾'' 62 49 ¾''
25 1'' 69 60 1''
32 11/4'' 78 70 11/4''
40 11/2'' 84 76 11/2''
50 2'' 89 91 2''
65 21/2'' 110 110 21/2''
80 3'' 125 125 3''

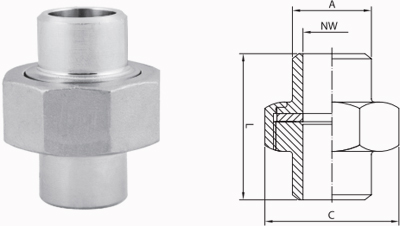

Union, conical stubs, ends for welding

  • Grade: 316
  • Catalog no.: 130
NW A L [mm] C [mm]
6 10,2 39 35
8 13,5 39 35
10 17,2 40 38
15 21,3 41 38
20 26,9 46 49
25 33,7 49 49
32 42,4 53 60
40 48,3 71 70
50 60,3 74 75
65 76,1 85 109
80 88,9 96 125
